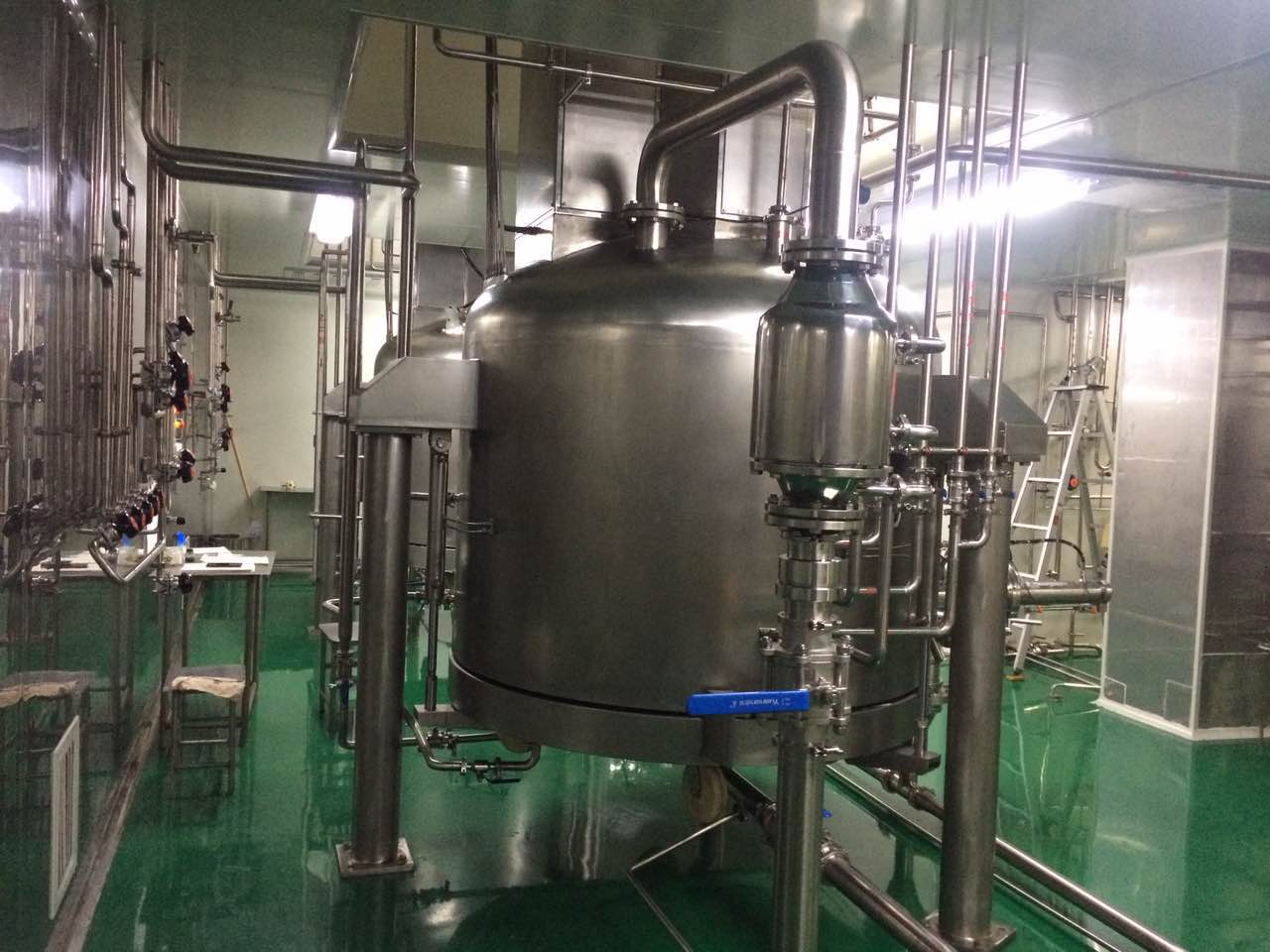

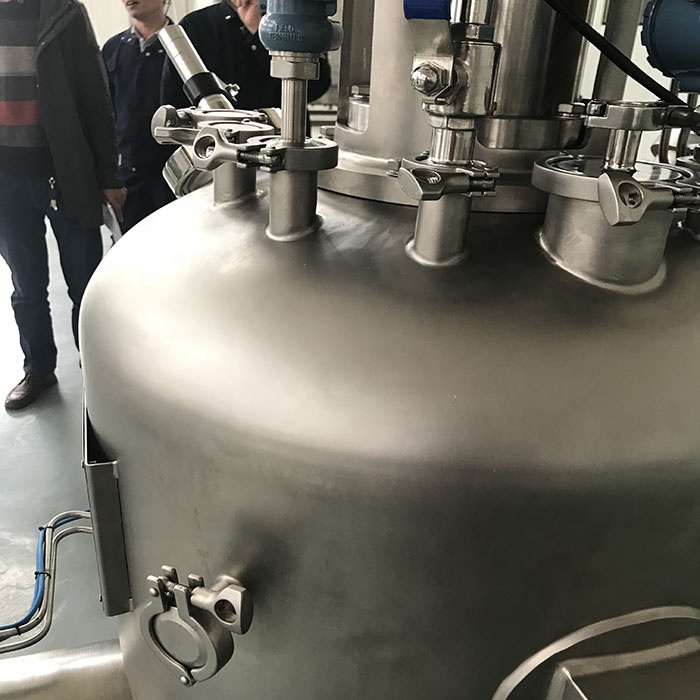

High Quality Hastelloy Agitated Nutsche Filter Dryer

  • High Quality Hastelloy Agitated Nutsche Filter Dryer
  • High Quality Hastelloy Agitated Nutsche Filter Dryer
  • High Quality Hastelloy Agitated Nutsche Filter Dryer
  • High Quality Hastelloy Agitated Nutsche Filter Dryer

High Quality Hastelloy Agitated Nutsche Filter Dryer

    Unit Price: 31999 USD
    Payment Type: T/T
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 90 Days
    Packaging: Wooden pallets/ Cartons/Plastic stretch-wrap
    Brand: Zhang
    Transportation: Ocean
    Place of Origin: Jiangsu Wuxi
    Supply Ability: 60/Year
    Certificate: CE
    Port: Shanghai

Product Description

Products Description

Filtering, washing and drying equipment( three-in-one) can replace filter, Filter Press at the same time, the double cone Dryer, drying chamber, filtering and drying equipment, can accomplish the filter in the same device, washing, drying, solid discharge process, which can realize closed, the whole process of continuous production operation, more adapted to the aseptic requirements products and toxic products production.It is widely used in fine chemical, petroleum, foodstuff, printing, pharmaceutical industries, Glyphosate, Penicillin and so on.

Nutsche Filter Dryer

Applications and Features

Material: SS304, SS316L, Ti, Hastelloy-C, PTFE lined or other materials

Applications:It is widely applied in the industries, such as pharmaceutical, chemical engineering, agrochemical, food, etc. It can realize the continuous operation in vacuum, and even more suitable for producing sterile and poisonous products.

Filtering Washing And Drying Equipment
Nutsche Filter Dryer Manufacturer

Process and structure

Filtering stage: The separation of filter cake and mother liquid. The thickness of filter cake can reach 500mm.
Washing stage: Further purification of filter cake, rinse and dehydration of mother liquid remained. Mix the lotion and the filter cake via up and down of agitator to make the filter cake slurry finally, then the filter cake can get the full wash.
Drying stage: Dehydrating and drying the filter cake. Agitator will scrape filter cake loose by layers while the sidewall; the bottom of Filter Plate and agitator will heat the filter cake at the same time. Moreover, the vacuum inside the equipment will accelerate the evaporating speed; the entered hot nitrogen will take away the damp and accelerate the speed of desiccation.
▾Bottom plate structure: :SUS304/316L
▾Filter plate: sintered plate/Filter Cloth (normally 5~50 um)
▾Dead angle of filter cloth: 25mm single side
▾Flatness degree of single plate: ±1mm/m
Product Details
Three-in-one Equipment
Stainless Steel Agitated Nutsche Filter Dryer
Main Characteristics
“All in One”
All the steps, including filtering, washing and drying, can be completed in one set of equipment. Drying treatment can be realized due to the heating jacket on the equipment.
Continuous operation
As filtering and drying is operated in one set of equipment, so there is no need to deal with wet filter cake. The final dry products can be transferred to weighing, packaging and other sections by machines.
Saving labor cost
Non-technical staffs only need to take simple training of operation. Technicians do not have to monitor the process all the time,including opening, closing, automatic feeding and discharging.
Proper cleaning
Agitated Nutsche Filter Dryer (filtering, washing and drying) sprays and stirs automatically, so filter cake can be properly cleaned while the amount of sewage and the cost of wastewater treatment can be reduced.
Clean Production
The dust catcher on the multifunctional filtering and drying equipment can collect dust after drying process, which meets the requirement of clean production.

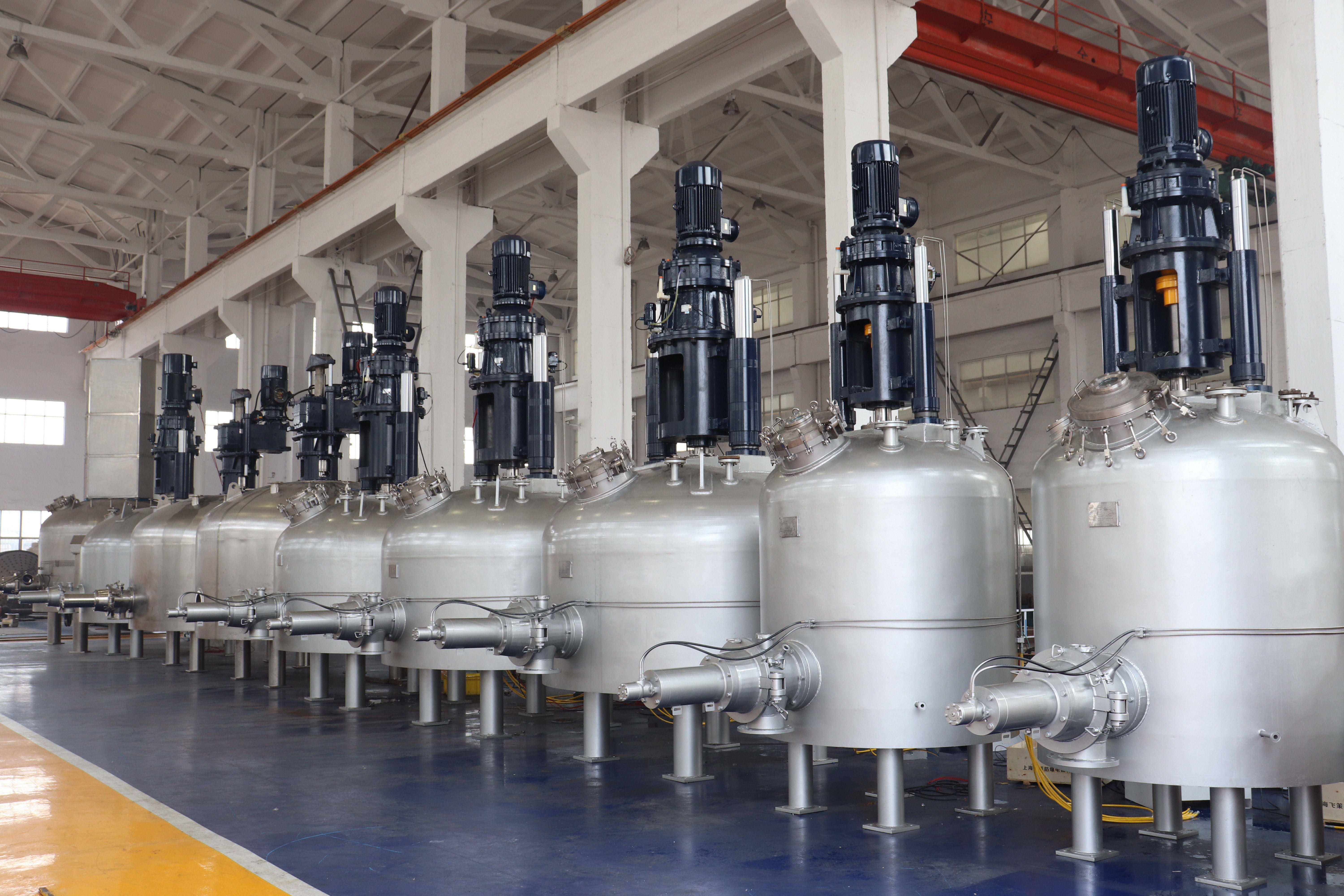

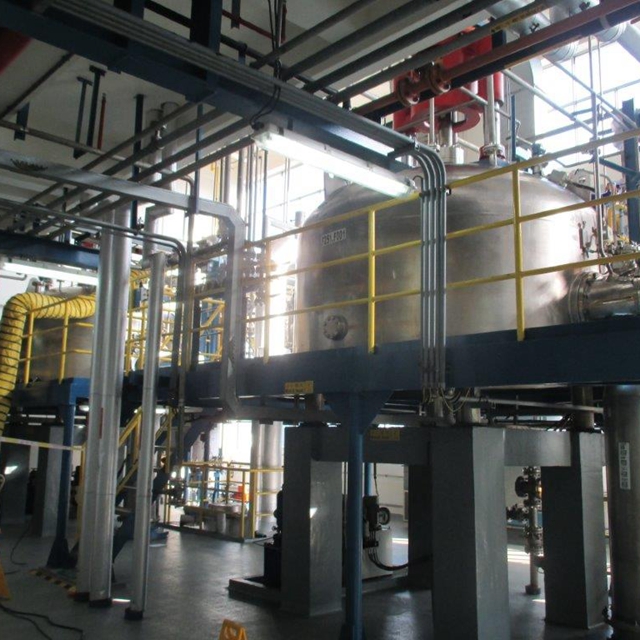

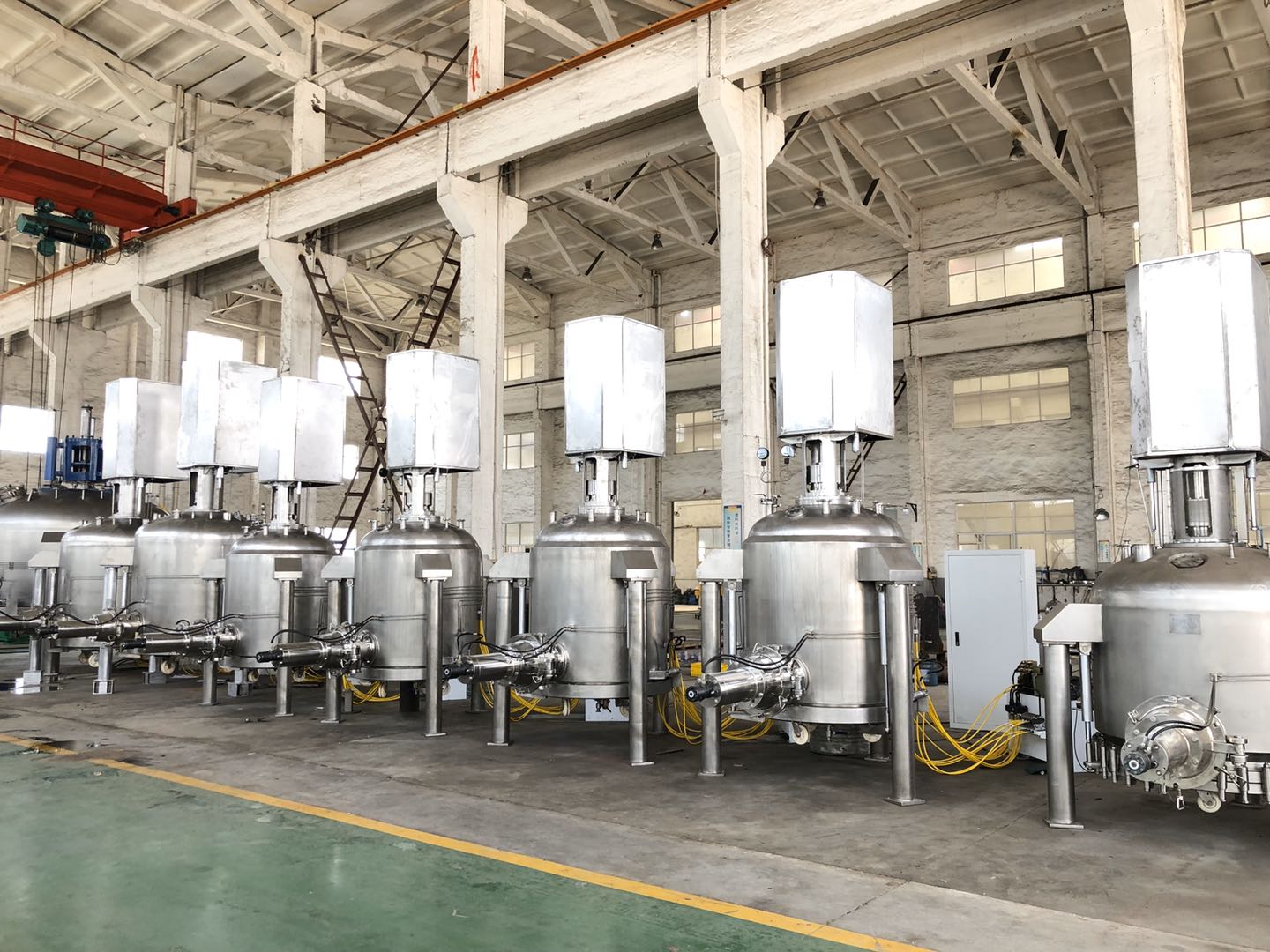

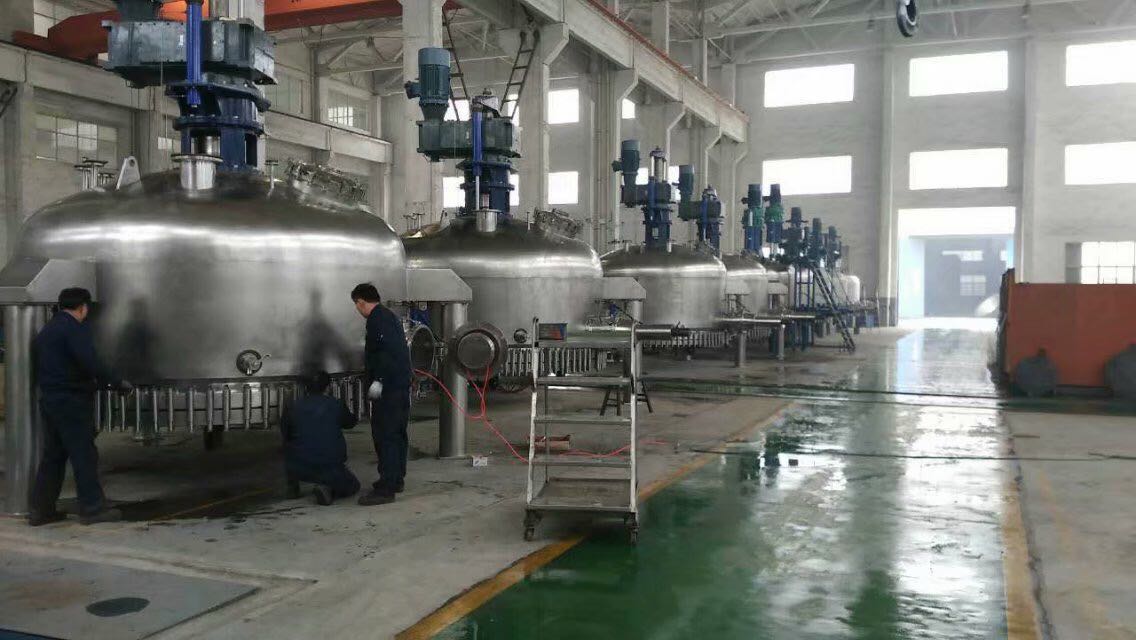

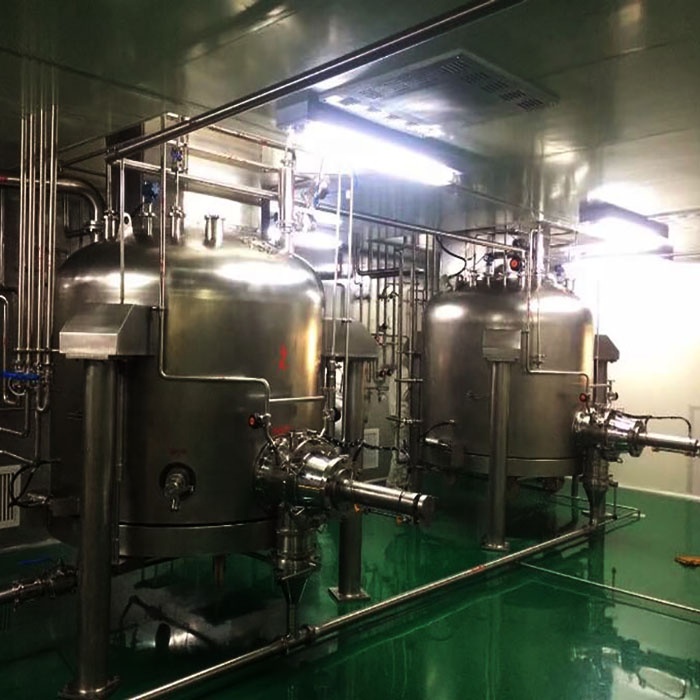

Nutsche Filter Dryer Machine Price
Chemical Vacuum Agitated Nutsche Filter Dryer
Hastelloy Vacuum Agitated Nutsche Filter Dryer
CE Approved Agitated Nutsche Filter Dryer
Technical parameters
Specification
Capacity(m³)
Filtering area(㎡)
Electrical motor power(kw)
φ800
0.6m³
0.5㎡
4kw
φ1000
1.2m³
0.8㎡
5.5kw
φ1200
1.5m³
1㎡
5.5kw
φ2000
4m³
3㎡
11kw
φ3000
10.2m³
7㎡
22kw
φ4000
22m³
13㎡
45kw
...



φ4600
30m³
16㎡
75kw

Our Advantage







Zhanghua VS Other
New advanced airtight technology, vacuum ≤ 50PA,Improve the quality of user products, can be used in the production of aseptic grade products

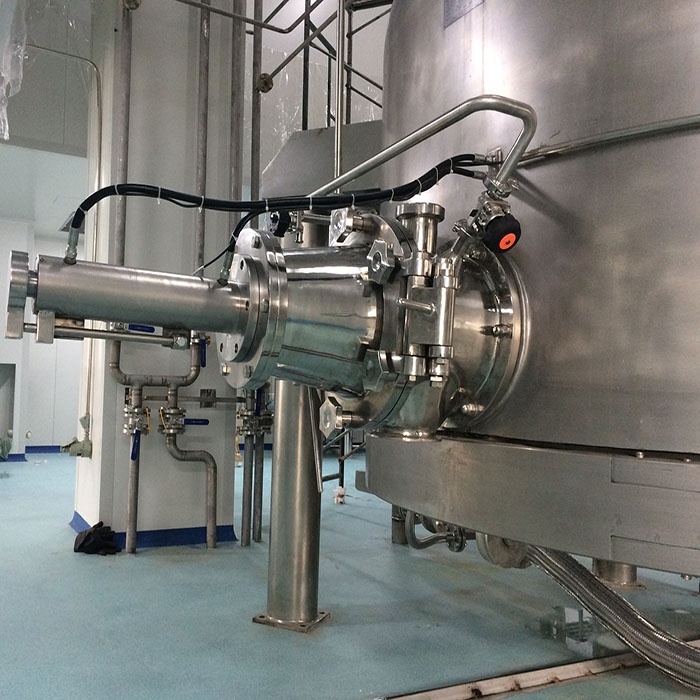

Quick open chassis,The maximum size is 3000mm diameter fast opening chassis,Save time and manpower, safe operation, simple and easy
Design of combined outlet,More reliable sealing performance, high safety, even power failure will not leak
High precision synchronization of stirring, chassis lifting, chassis locking,Improve the transmission precision of the equipment, increase the service life and safety reliability
PLC and DCS automatic control,Save time and manpower, safe operation, simple and easy
On - line monitoring of main shaft bellows,Detect the leakage at the first time, and take corresponding measures to reduce the loss of materials
On line cleaning of vacuum filter, complete on line cleaning of highest parts of equipment with minimum cleaning fluid
European technology, China's earliest three-in-one manufacturer,Reliable performance, 20 years of experience, has been produced no less than 300

Design / Calculation Software

WUXI ZHANGHUA PHARMACEUTICAL EQUIPMENT CO., LTD.

 Wuxi Zhanghua Pharmaceutical Equipment Co. Ltd. was founded in 1976, committed to researching, developing and manufacturing reaction, crystallization, filtration, drying equipment. With the development of the leading technologies for 44 years, our engineering equipment is not only for the pharmaceutical industry, but also for fine chemicals, pesticides, new energy, new materials and other industries. We customize the integrated solution of reaction, crystallization, filtration and drying process equipment for clients.
Our technical team is composed of quality assurance engineers, process engineers, equipment engineers, welding engineers and electrical engineers, and most of them have working experience and engineering project experience for over ten years.
For inflammable, explosive, toxic and corrosive products in pharmaceutical, fine chemical, pesticide and new energy industries, we customize the technology and equipment solution and provide high airtight, high vacuum, fully automatic equipment for clients, to ensure safety, energy conservation and environmental protection of the production process, and compliance with EHS requirements. In addition, we will optimize technology designs for users in order to produce high quality products.
All of our equipment has met FDA and CGMP requirements, ATEX explosion-proof instruction requirements and ASME requirements, and has got PED, MD, LVD certification as well.
The equipment has been exported to several pharmaceutical and chemical enterprises in Asia and Europe, so our engineers in after-sale service department have rich experience abroad.
Wuxi Zhanghua is adhering to the spirit of professionalism, credibility, integrity, innovation and harmony, committed to becoming an advanced international company with high technology and high quality trusted by all the clients. Zhanghua has more than ten intellectual property rights, including patents, software copyright and etc., all of which helps it to keep its excellent sustainability and creativity in the industry. With years of unceasing efforts, Zhanghua has made considerable progress in reaction, crystallization, filtration and drying technology on the equipment, and has established a good image in the field of pharmaceutical and chemical industry.
